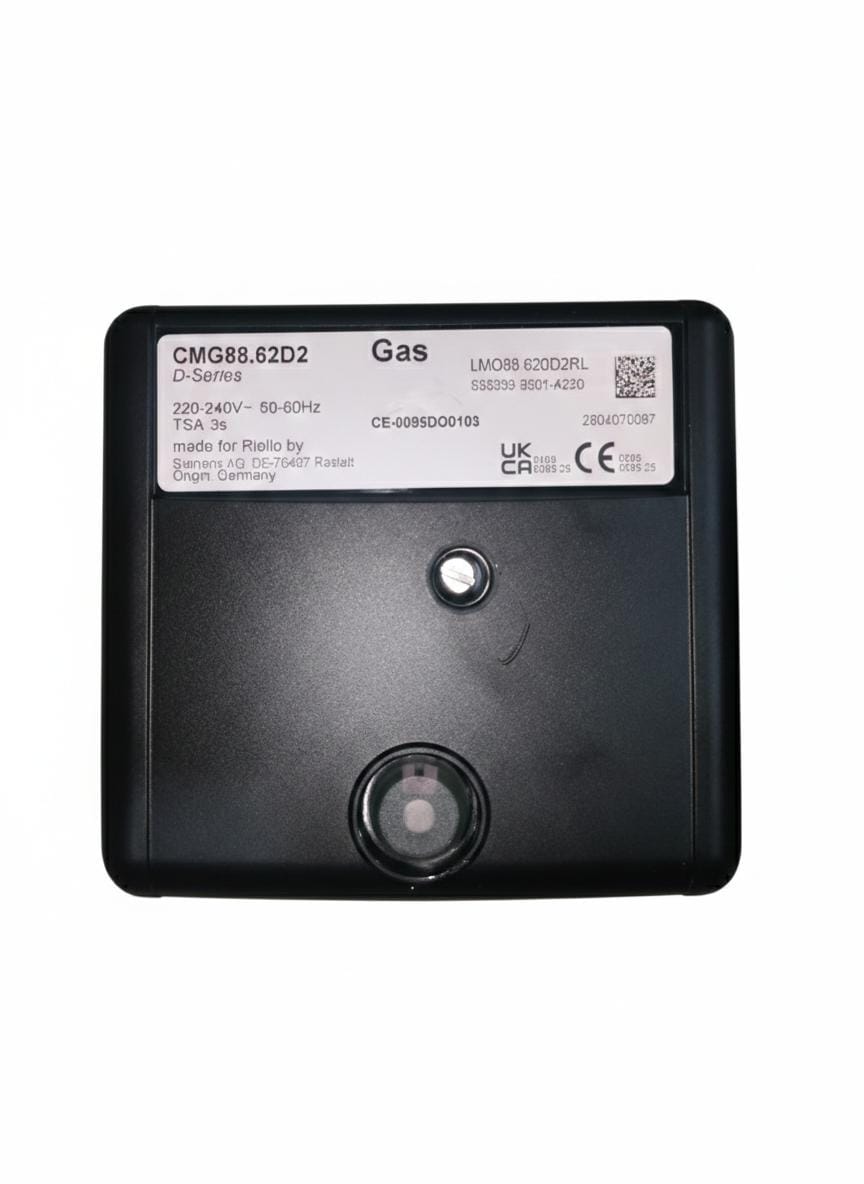

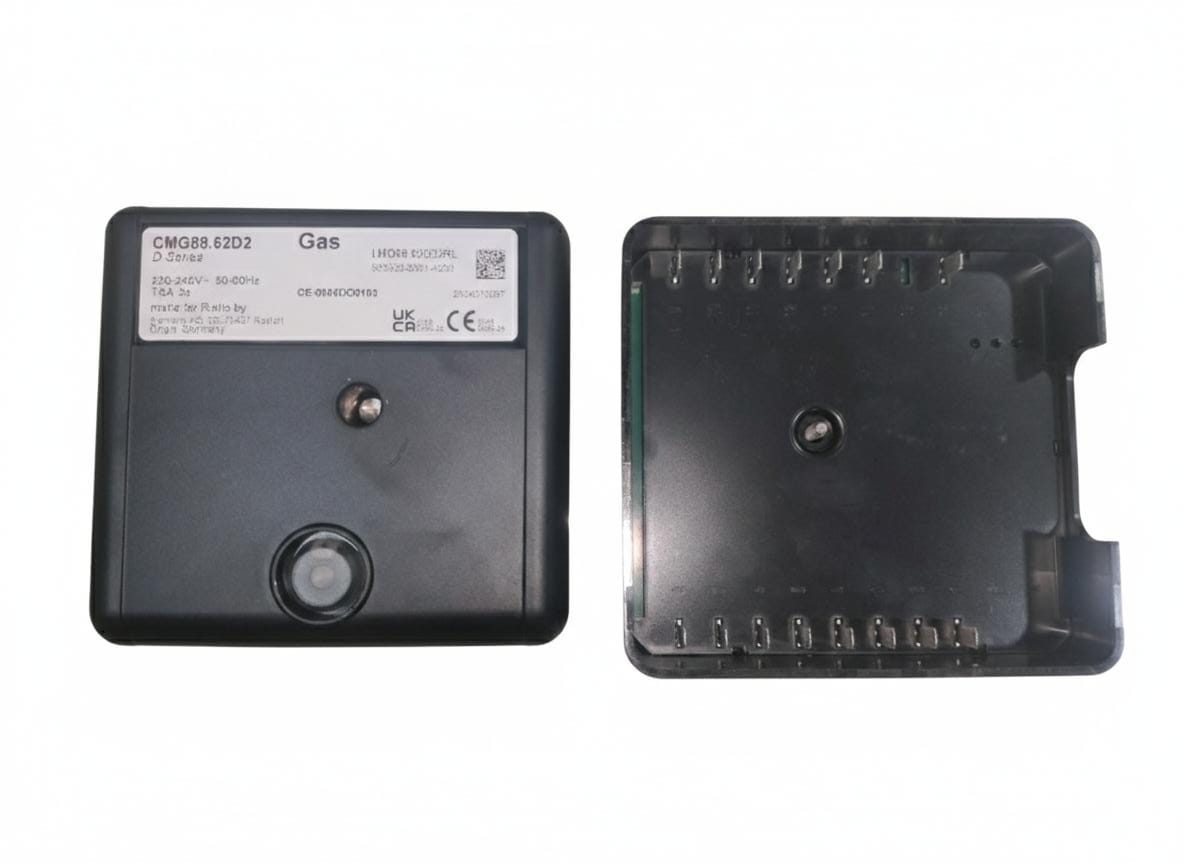

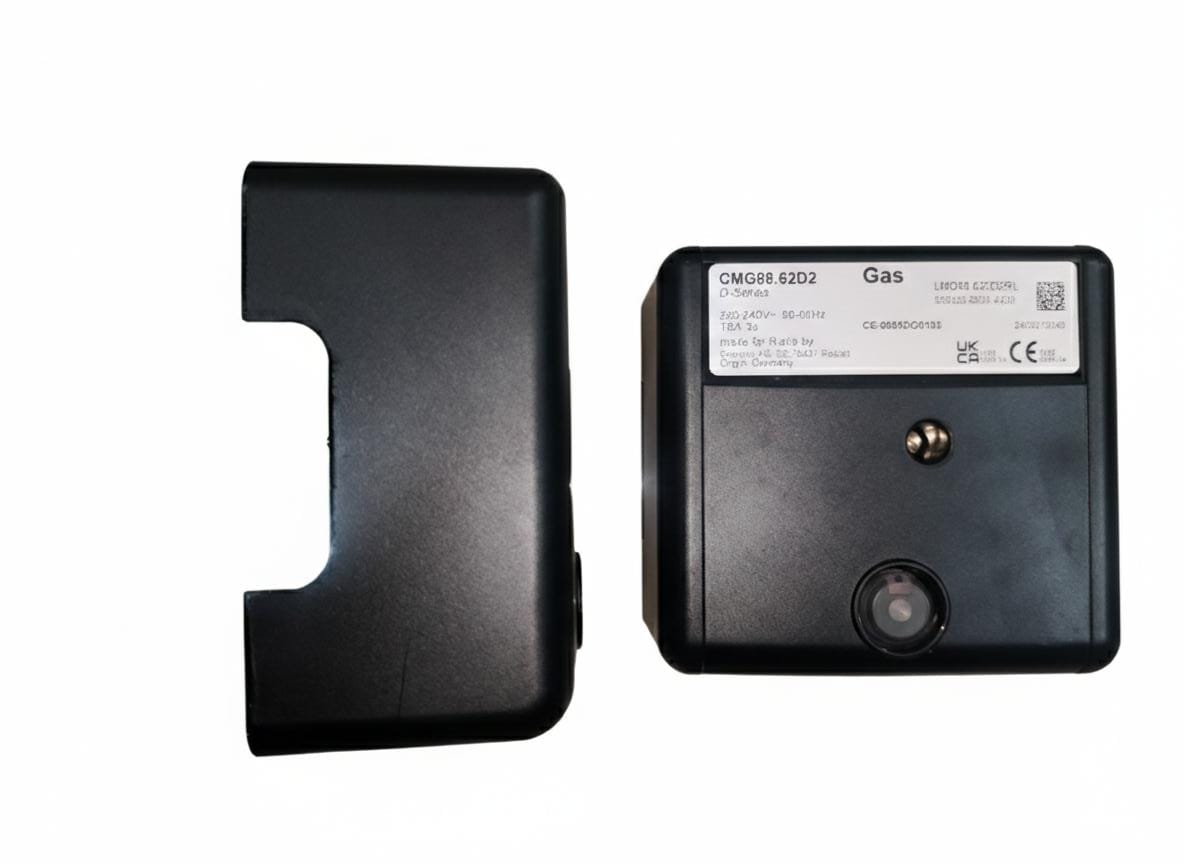

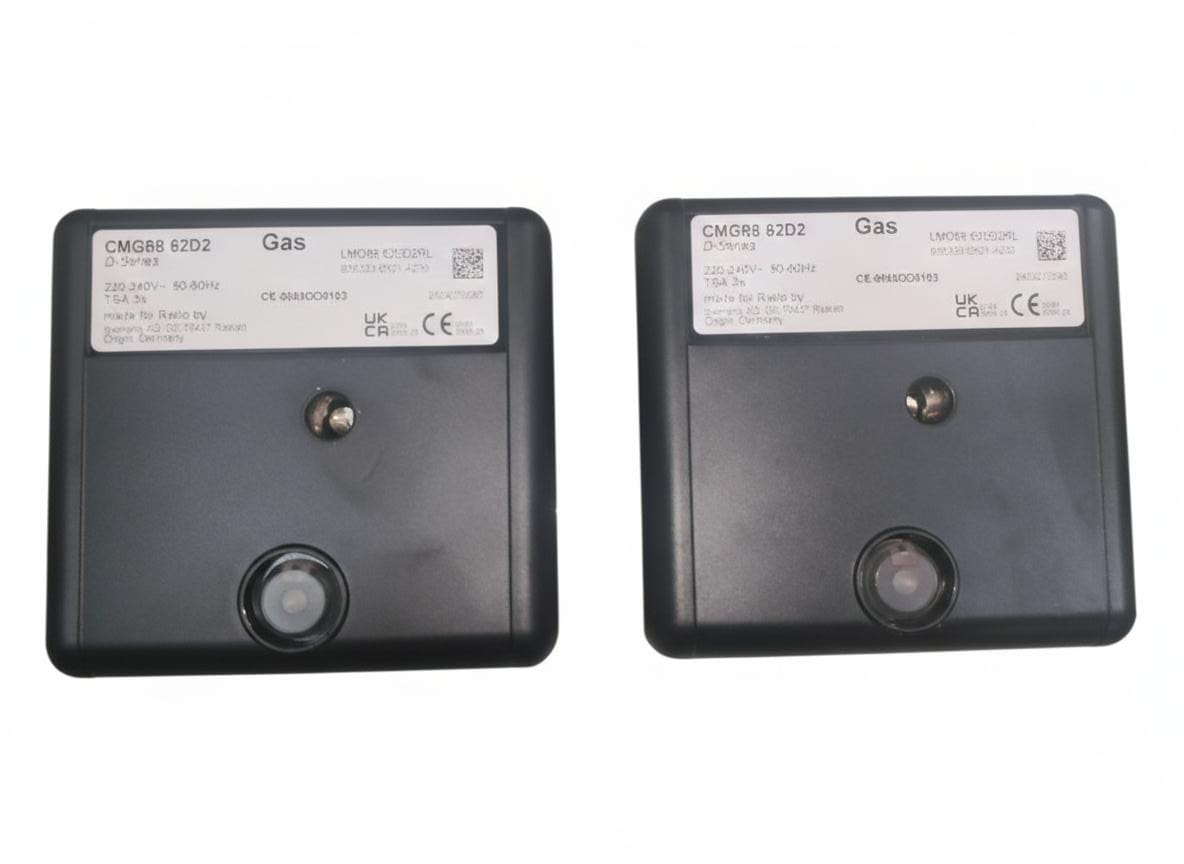

Riello Gas Burner Control Box CMG88.62D2
Approx. Original price was: ₹15,000.00.₹11,000.00Current price is: ₹11,000.00. (+ GST, freight extra)
Riello CMG88.62D2 (code 3013073) gas burner control box, made by Siemens for Riello. Replaces RMG88.62C2. 220–240 V 50/60 Hz, 3 s safety time. Fits Riello 40 FS gas burners. WhatsApp +91 98197 08885 for price.
Product description
The Riello CMG88.62D2 (Riello code 3013073) is the burner control box used on Riello gas burners, made by Siemens for Riello. It replaces the older RMG88.62C2, runs on 220–240 V 50/60 Hz and has a 3-second safety time. Combustion & Control Systems in Vasai, Mumbai supplies it for Riello gas burner service across India.
Ask price and availability on WhatsApp: +91 98197 08885
Riello CMG88.62D2 technical specifications
| Part code | CMG88.62D2 |
|---|---|
| Riello code | 3013073 |
| Made by | Siemens, for Riello |
| Type | Gas burner control box |
| Replaces | Riello RMG88.62C2 |
| Safety time | 3 s |
| Supply voltage | 220–240 V, 50/60 Hz |
| Operation | Intermittent (at least one controlled shutdown every 24 hours) |
Which Riello burners use the CMG88.62D2?
The CMG88 / RMG88 control boxes are fitted on Riello gas burners, including the Riello 40 FS5 and Riello 40 FS10 / FS20. If your burner currently has an RMG88.62C2, the CMG88.62D2 is its replacement. Check the code on the label of your old box, or send us a photo on WhatsApp to confirm.
Common CMG88 lockout causes
- Weak ionization signal from a dirty or wrongly positioned probe.
- No spark from the ignition electrode.
- Low gas pressure or a gas pressure switch that does not close.
- Air pressure switch not proving.
- Phase and neutral reversed on the supply.
Read our guide to Riello CMG88.62D2 faults and fixes for more detail.
Buy Riello CMG88.62D2 in Mumbai
Combustion & Control Systems has supplied Riello burner spares since 1996. Address: Gala No. 204, B Block, Prime Trade Center, Waliv Phata, Sativali Road, Vasai (E) – 401208, Maharashtra. We dispatch across India.
WhatsApp +91 98197 08885 for price
Frequently asked questions
What is the Riello code for the CMG88.62D2?
3013073.
Does the CMG88.62D2 replace the RMG88.62C2?
Yes. The CMG88.62D2 is the current replacement for the RMG88.62C2 on Riello gas burners.
Can it run a burner continuously?
No. It is designed for intermittent operation, so the burner must shut down under control at least once every 24 hours.
Is it an oil burner control?
No. It is for Riello gas burners. Riello 40 G-series oil burners use the Riello 530SE control box.
