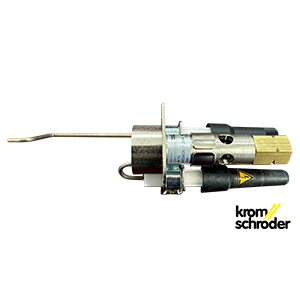

Honeywell Kromschröder Pilot Burners ZAI, ZMI & ZKIH
Honeywell Kromschröder ZAI Pilot Burner view 2Honeywell Kromschröder ZAI Pilot Burner view 3Honeywell Kromschröder ZAI Pilot Burner view 4Honeywell Kromschröder ZAI Pilot Burner view 5
Request Quote ↓Kromschröder Burners, Burner Controls & Gas Valves

Honeywell Kromschröder Pilot Burners ZAI, ZMI & ZKIH

Approx. Original price was: ₹30,000.00.Current price is: ₹25,000.00. (+ GST, freight extra)

Honeywell & Kromschröder Pilot Burners – ZAI, ZMI & ZKIH are industrial pilot burners for suitable gas burner ignition and flame control applications. We supply replacement pilot burners, ionization pilot burners, atmospheric pilot burners and forced-air pilot burners for industrial maintenance and burner service requirements. The range includes Kromschröder ZAI, ZMI and ZKIH models, along with selected ignition electrodes, ionization electrodes, adapters, protective tubes and high-voltage ignition cables.

In addition, we supply industrial combustion and burner components from Mumbai, India, with supply across Indian cities and states and worldwide export enquiries. For replacement requirements, send the existing model number, part number or clear product photographs so the correct configuration can be checked.

Buy or enquire about Honeywell and Kromschröder pilot burners:
https://www.oilburnernozzle.com/

Product description

The Honeywell Kromschröder ZAI Pilot Burner is available from ready stock with Combustion and Control Systems.

Combustion & Control Systems, Mumbai supplies genuine Honeywell Kromschröder pilot burners in the ZAI, ZMI and ZKIH series for industrial furnaces, ovens and process heaters, along with their spare parts.

Honeywell & Kromschröder Pilot Burners – ZAI, ZMI & ZKIH

We supply Honeywell and Kromschröder pilot burners for gas burner ignition, flame control and replacement needs. We also supply parts such as ignition electrodes, ionization electrodes, adapters and high-voltage cables.

Our range includes Kromschröder ZAI, ZMI and ZKIH pilot burners. These pilot burners are used in many types of industrial gas burner systems. Therefore, they can be a good choice for plant repair, burner service and pilot burner replacement.

Industrial Replacement Pilot Burners

When a pilot burner needs to be replaced, the new unit should match the existing burner system. For this reason, check the brand, model number, gas type, burner size, power and tube length before you buy.

Also, clear photos of the old pilot burner and nameplate can help us find the right model. As a result, you can reduce the risk of buying the wrong replacement.

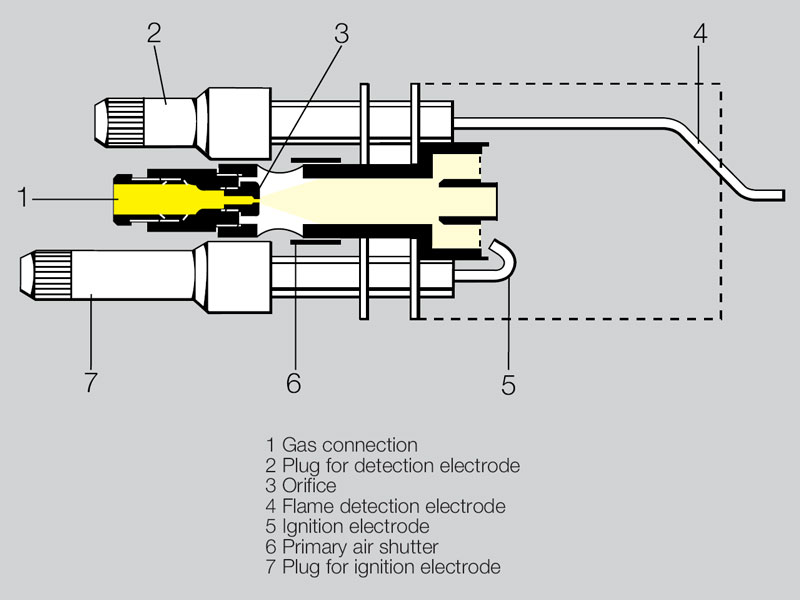

Kromschröder ZAI Pilot Burner

The Kromschröder ZAI pilot burner is an atmospheric pilot burner for safe ignition and flame control of suitable gas burners.

The ZAI has a capacity of about 3 kW (2,500 kcal/h). It can be used with natural gas and propane when the correct setup is used.

The ZAI uses direct ignition and ionization flame control. It can be used with suitable Kromschröder automatic burner controls, such as IFD and PFU.

ZAI Pilot Burner Features

  • Atmospheric pilot burner
  • Capacity: about 3 kW
  • About 2,500 kcal/h
  • Direct ignition
  • Ionization flame control
  • For natural gas and propane
  • Natural gas orifice supplied as standard for the stated setup
  • LPG orifice option for the right setup
  • Compact design for industrial burner use

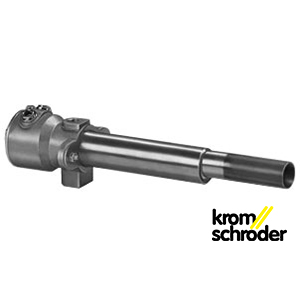

Kromschröder ZKIH Pilot Burner

The Kromschröder ZKIH pilot burner is a forced-air pilot burner for gas burner ignition and flame control.

It has a power range of about 2–7 kW. Also, its strong design helps support long service life in suitable industrial use.

The ZKIH has an ignition electrode for electric ignition and an ionization electrode for flame control. In addition, different tube lengths are available for different burner setups.

ZKIH Models

ModelBurner SizeTube Length
ZKIH 150/100R150 mm100 mm
ZKIH 200/100R200 mm100 mm
ZKIH 300/100R300 mm100 mm
ZKIH 400/100R400 mm100 mm
ZKIH 500/100R500 mm100 mm

Kromschröder ZMI Pilot Burner

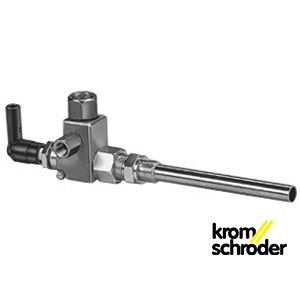

The Kromschröder ZMI pilot burner is a small forced-air pilot burner for suitable industrial gas burner systems.

The ZMI uses electric ignition and ionization flame control. It also has a slim design, adjustable mount and different tube lengths.

ZMI 16

  • Capacity: 0.8–1.4 kW
  • Approx. 2,800–4,800 Btu/h
  • Burner size: 16 mm
  • Tube lengths from 150 mm to 600 mm

ZMI 25

  • Capacity: 1.2–3.4 kW
  • Approx. 4,000–11,500 Btu/h
  • Burner size: 25 mm
  • Tube lengths from 150 mm to 600 mm

ZMI Pilot Burner Models

ModelBurner SizeTube Length
ZMI 16TB150N16 mm150 mm
ZMI 16TB200N16 mm200 mm
ZMI 16TB300N16 mm300 mm
ZMI 16TB400N16 mm400 mm
ZMI 16TB500N16 mm500 mm
ZMI 16TB600N16 mm600 mm
ZMI 25TB150N25 mm150 mm
ZMI 25TB200N25 mm200 mm
ZMI 25TB300N25 mm300 mm
ZMI 25TB400N25 mm400 mm
ZMI 25TB500N25 mm500 mm
ZMI 25TB600N25 mm600 mm

Pilot Burner Parts

We also supply parts for suitable pilot burner models.

Available parts include:

  • Ignition electrodes
  • Ionization electrodes
  • Electrode adapters
  • Heat-resistant protection tubes
  • Ignition cables
  • 7 mm high-voltage silicone cable

For example, ZAI parts include:

  • 35437010 – Heat-resistant protection tube
  • 34472920 – Ionization electrode
  • 04115302 – Ionization electrode adapter
  • 34472941 – Ignition electrode
  • 04115306 – Ignition electrode adapter

Please check the part number before ordering.

Pilot Burners for Industrial Maintenance

A pilot burner is an important part of a gas burner system. It helps start the main burner and, where used, helps check the flame.

Therefore, a worn or damaged pilot burner may need to be replaced during plant repair or burner service.

We supply pilot burners for suitable uses in:

  • Industrial burners
  • Gas-fired furnaces
  • Industrial ovens
  • Boilers
  • Kilns
  • Process heaters
  • Heating systems
  • Burner repair
  • Burner service
  • Plant maintenance

The right pilot burner depends on the burner type, gas, power, size and control system.

How to Find the Right Pilot Burner

Before ordering a replacement, send us:

  • Pilot burner brand
  • Model number
  • Part number
  • Gas type
  • Burner power
  • Tube length
  • Mount size
  • Photos of the old pilot burner
  • Photos of the nameplate

This information helps us check the right model for your burner system.

India-Wide Pilot Burner Supply

We also offer worldwide export for suitable industrial burner products.

Buy Honeywell & Kromschröder Pilot Burners

Looking for a Honeywell pilot burner, Kromschröder pilot burner, ZAI, ZMI or ZKIH pilot burner?

Contact We Combustion and Control Systems, Mumbai for replacement pilot burner requirements.

Send us the old model number, part number or clear photos. We will use the available details to help you find the right pilot burner.

Website: https://www.oilburnernozzle.com/

India-wide supply | Worldwide export

Order the Honeywell Kromschröder Pilot Burners from Combustion & Control Systems

We supply pilot burners and parts across India and overseas. Send your requirement on WhatsApp +91 98197 08885 and we will reply with price and availability.
